• C-200 truck chiller units evaporator

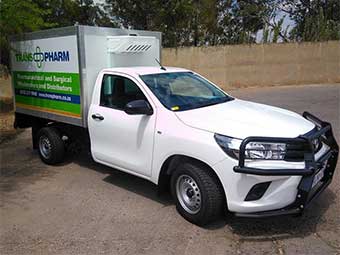

  • C-200 pickup Truck Chiller Units

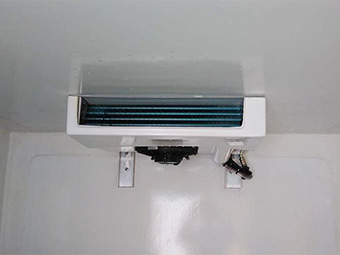

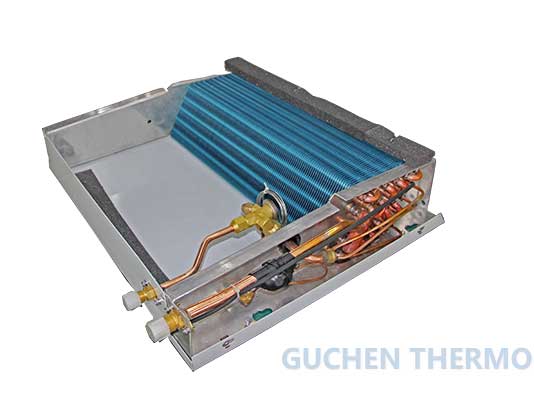

  • C-200 Truck Chiller Units inner side of evaporator
C-200 Truck Chiller Unit for 2-10 m³ Truck Box

Driven Type:Vehicle Engine Driven Units

Installation:Split Front Mounted

Compressor:DY5H11/108cc

Controller:Digital, In Cab

Application:2~10m³

Refrigerant :R134a

Introduction:


Description of Guchen Thermo C-200 Refrigeration Units for Pickup Trucks

Guchen Thermo as the truck refrigeration units suppliers in China supply the C (means chiller) series truck chiller units include C-200 reefer units for pickup trucks and
C-300 truck chiller units models, of which, C-200 refrigeration unit for pickup truck is for small trucks with 2~10m³ truck bodies or 4.2 meter length refrigerated truck boxes, especially widely apply for the pickup trucks.

With R134a Eco-friendly refrigerant, the cooling capacity of C-200 refrigeration units for pickup trucks are up to 2700W, and temperature range is -5℃ to +25℃, which are especially designed for delivering fresh foods, such as flowers, meat, milk, yoghourt, vegetables…

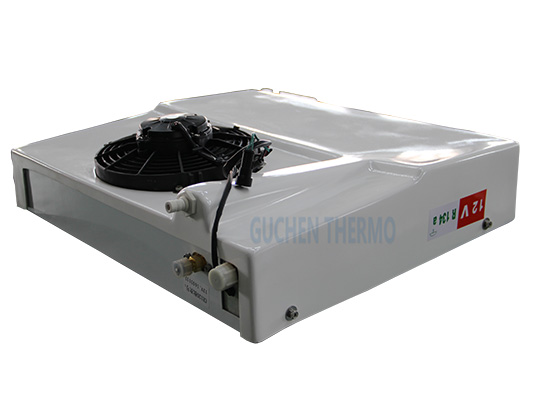

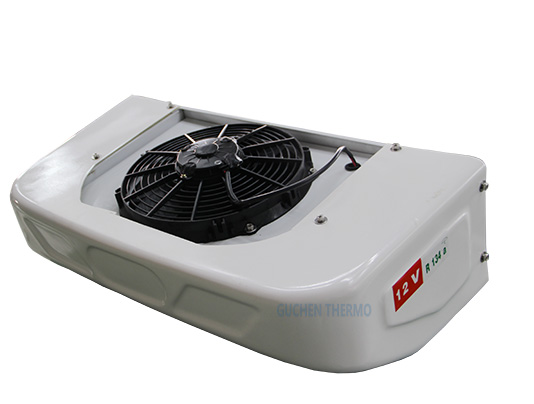

Guchen thermo C-200 truck refrigeration units kits
PHOTO: Guchen Thermo C-200 truck refrigeration units kits (Left: Condenser and Right: Evaporator)

Have a higer demand to the temperature that can be down to -30℃? Want to transport deep frozen cargoes? Try the following:

▲ Guchen Thermo TR-200 refrigeration units for pickup trucks
▲ Or find the suitable truck freezer units in Guchen Thermo TR series truck refrigeration systems!

Features:


Guchen Thermo C-200 Truck Chiller Units Unite Features


◆ H/P, L/P protection of cooling system
◆ High/low voltage protection of cooling system
◆ Liquid injection and oil return protection device
◆ Thermal protection device
◆ R404a refrigerant
◆ Especially designed for pickup truck chiller units
◆ Super slim evaporators, save box space and increase cargo load
◆ Hot gas defrosting system

Application:


C-200 Truck Chiller Units for Pickup trucks   C-200 Truck Chiller Unis for pickup Truck Evaporators   C-200 Truck Chiller Unis for pickup Truck digital panel

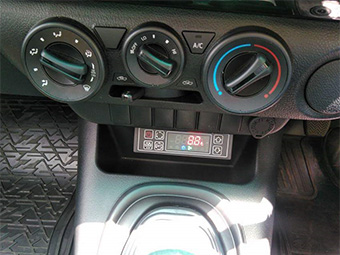

Here in this piece of photo, it is about C-200 truck chiller units install on the ISUZU pickup trucks. Our customer use it for delivering pharmaceutical and surgical in their local place. The chiller units temperature is at 8.8℃ to keep the pharmaceutical safe. In the first photo, the condenser is front mounted on the pickup trucks, looks small in size. In the second photo, you can see the evaporator has one fan, and coil adopts aluminum foil with internal ridge copper tube, looks very beautiful and have a high quality cooling performance. In the third photo, C-200 truck chiller unis for pickup truck digital panel shows +8.8℃.

---Guchen Thermo C-200 Pickup Truck Chiller Units Apply for pharmaceutical Delivery

Technical Data:



Model C-200

Temperature Range In Container

-5℃ ~ +25℃ / 23℉ ~ +77℉

Cooling Capacity

1700W  ( 0℃/32 )

Drive Model

Direct Vehicle Engine Driven

Voltage DC (V)

12V/24V

Refrigerant

R134a

Refrigerant Charge

0.8Kg - 0.9Kg

Box Temperature Adjustment

Electronic Digital Display

Safety Protect

High and low pressure switch

Defrosting

Defrosting and heating optional

Compressor

Model

DY5H11

Displacement

108cc/r

Condenser

Coil

Aluminum micro-channel parallel flow coils

Fan

1 Axial Fan

Dimensions&Weight

765 ×380×290mm&14.8 kg

Evaporator

Coil

Aluminum foil with internal ridge copper tube

Fan

1Axial Fan

Dimensions&Weight

610×550×175 mm&11.8 kg

Box Volume

0℃/32

10m³

Optional Function

Electric standby, Heating system, CPR valve
