TR-200T Van Freezer Unit for 8-12m³ Van Box

Driven Type:Vehicle Engine Driven Units

Installation:Split Roof Top Mounted

Compressor:QP13 108cc/r

Controller:Digital, In Cab

Application:7~11m³

Refrigerant :R404a

Introduction:


Guchen Thermo TR-200T Van Freezer Unit
Description

Guchen Thermo TR-200T refrigeration units for small vans are roof top condenser mounted units, driven by vehicle engine, with ultra-thin evaporator, which can save more loading space, and convenient to install.


The freezer units for vans is suitable 8 – 12m³ van box. This van freezer unit adopts R404a Eco-friendly refrigerant, cooling capacity is up to 2000W and customers can set up the temperature from -20℃ to +25℃ for delivering fresh goods or deep frozen goods, such as ice cream.

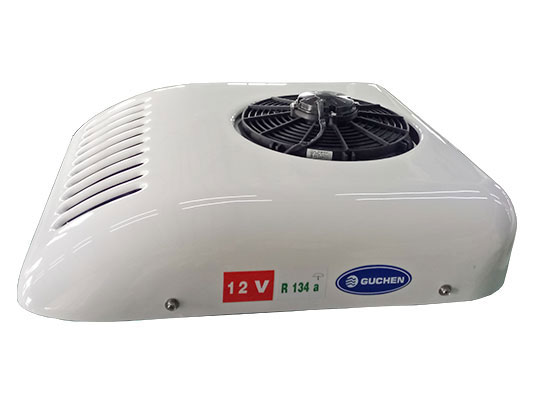

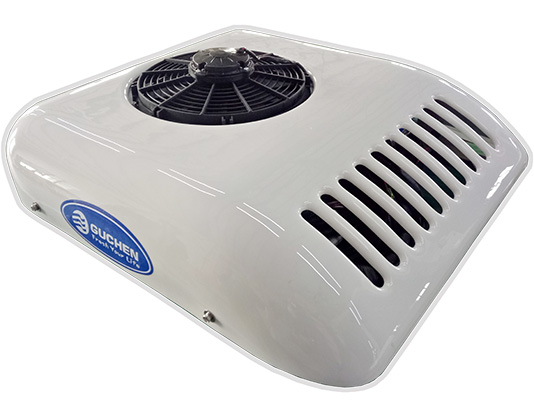

The condenser of Guchen Thermo cargo van refrigeration unit adopts parallel flow structure, which has the advantages of great heat dissipation, light weight and small size. Because of the hydrophilic aluminum foil with internal ridge copper tube in condenser, the heat dissipation rate is increased by 30%.

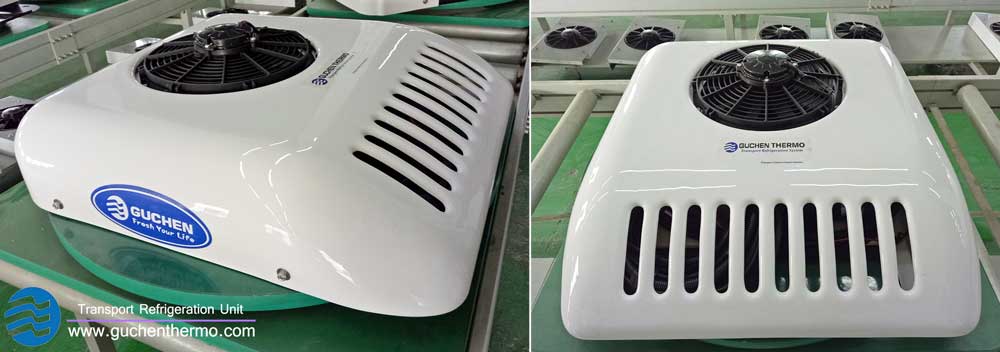

guchen thermo TR-200T refrigeration units for cargo vans
PHOTO: guchen thermo TR-200T refrigeration units for cargo vans

Features:


Guchen Thermo TR-200T Reefer Units for Vans Unique Features


◆ Adopt R404a Eco-friendly refrigerants
◆ Multi-functional operation panel, will display ℃ or ℉ for choice.

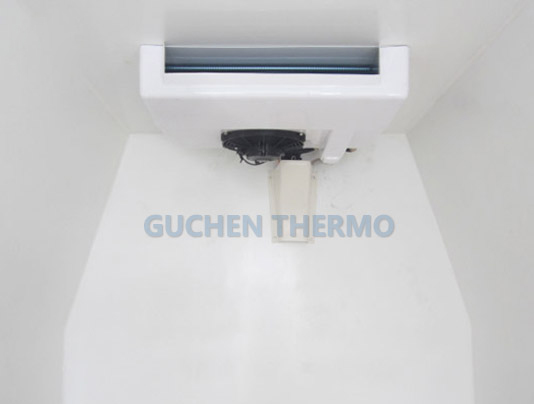

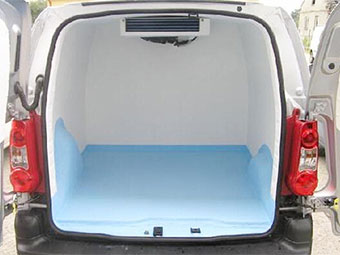

◆ Super slim evaporator, only takes up less than 1 m³ space, which saves space and increase cargo loading capacity greatly.
◆ Hot gas defrost system (Automatic /Manual )
◆ 12 Volt or 24 Volt operating system
◆ Liquid injection solenoid valve, help to protect compressors when ambient temperature is too high.
◆ Emergency switch protection device
◆ Thermal Protection Device
◆ High / low protection device for the whole refrigerating system
◆ Safe installation structure, which can improve the protection against electromagnetic interference.

Application:


  Guchen Thermo TR-200T van refrigeration unit for sale Guchen Thermo TR-200T van refrigeration unit for sale guchen thermo TR-200T refrigeration units for cargo vans

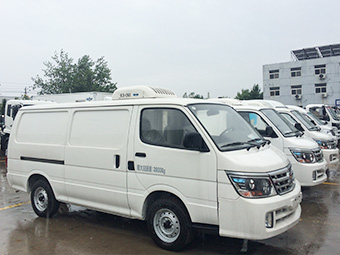

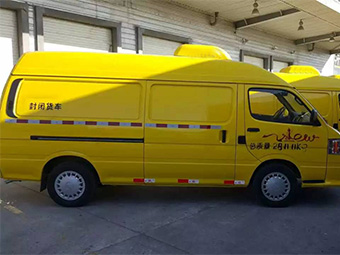

Here is the Guchen Thermo TR-200T van refrigeration units mount on Huahuaniu Dairy Corporation, used for deliver dairy products in Zheng Zhou City, China. According to the feedback, the TR-200T reefer units for vans apply on the 2900 x 1400 x 1530 mm, 6m³ refrigerated van bodies, with GPS computer control system, they can easy to keep the dairy products in 2℃-6℃ on the way, and when the dairy products arrived at customers hands, the dairy still fresh and cool, which meet their demand of “fresh” idea.

---100 sets of Van Freezer Units Mount on Huahuaniu Dairy Corporation Ltd

Technical Data:


Model  TR-200T

Temperature Range In Container

-18℃ ~ +30℃ / -0.4℉ ~ +86℉

Cooling Capacity

2000W/1720Kcal/6824BTU (0℃/32℉)

1100W/946Kcal/3753BTU (-18℃/-0.4℉)

Driven Model

Direct Vehicle Engine Driven

Voltage DC (V)

12V/24V

Refrigerant

R404a

Refrigerant Charge

1.0Kg ~ 1.1Kg

Box Temperature Adjustment

Electronic digital display

Safety Protect

High and low pressure switch

Defrosting

Hot gas defrost (CPR)

Compressor

Model

SD5S11(108CC/r)

/QP13

Condenser

Coil

Aluminum micro-channel parallel flow coils

Fan

1 Axial Fan

Dimensions&Weight

700×700×190 mm & 18.3 kg

Evaporator

Coil

Aluminum foil with internal ridge copper tube

Fan

1 Axial Fans

Dimensions&Weight

610×550×175 mm & 12.3 kg

Box Volume (m³)



7m³ (-18℃/-0.4℉)

11m³ (0℃/32℉)

Optional Function

Heating, Electric standby system AC 220V/380V, CPR Valve
