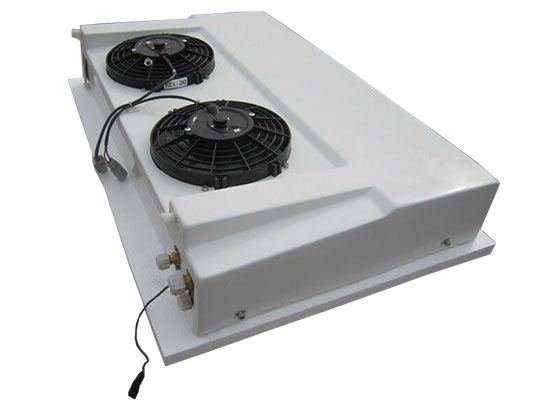

• C-300 Truck Chiller Units evaporators
  • C-300 Truck Chiller Units condenser

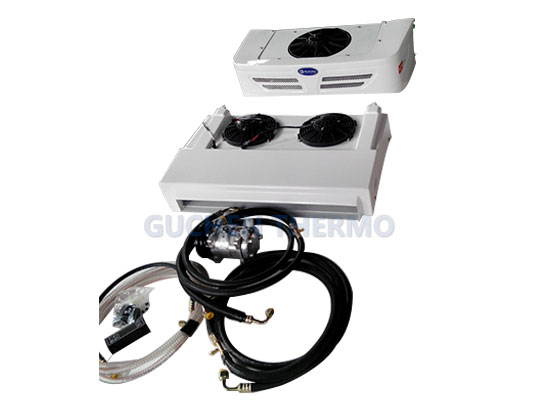

  • C-300 Truck Chiller Units

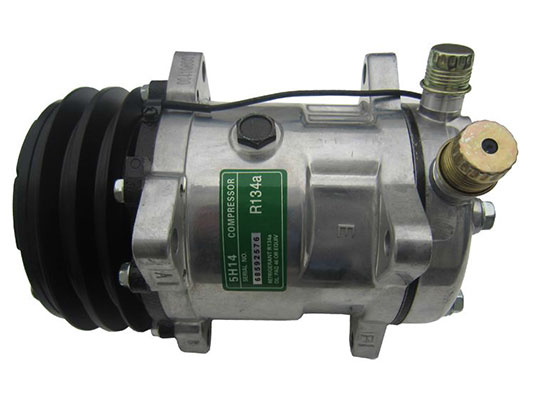

  • C-300 Truck Chiller Units compressors

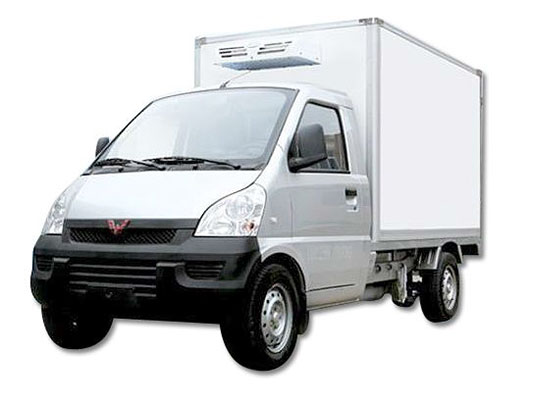

  • C-300 Truck Chiller Units for small trucks
C-300 Truck Chiller Unit for 10-15m³ Truck Box

Driven Type:Vehicle Engine Driven Units

Installation:Split Front Mounted

Compressor:DY5H14/138cc

Controller:Digital, In Cab

Application:10~15m³

Refrigerant :R134a

Introduction:


Description of Guchen Thermo C-300 Small Truck Refrigeration Units


Guchen Thermo C series (chiller) units are specially designed for transporting fresh cargoes, such as fruits, vegetables, fresh meat, beverage, yogurt, chiller eggs, pharmaceutical and surgical, which can meet most of marketing demands to transport fresh goods.

So this cooler units for truck is the most economic solutions for small truck owners and distributors, greengrocery, vehicle refitting factories to transport chilled products like fresh fish(in ice), fruit and vegetables, cooked or sweet dishes, milk, fresh meat or chilled eggs, etc.

C-300 small truck refrigeration units can be mounted on 10 -15 m³ refrigerated truck bodies, and use R134a Eco-friendly refrigerant, the cooling capacity of C-300 refrigeration unit for bakkie is up to 3000W, and temperature is range from -5℃ to +30℃, which can cool temperature quickly and can decrease system pressure and increase compressor’s service time.

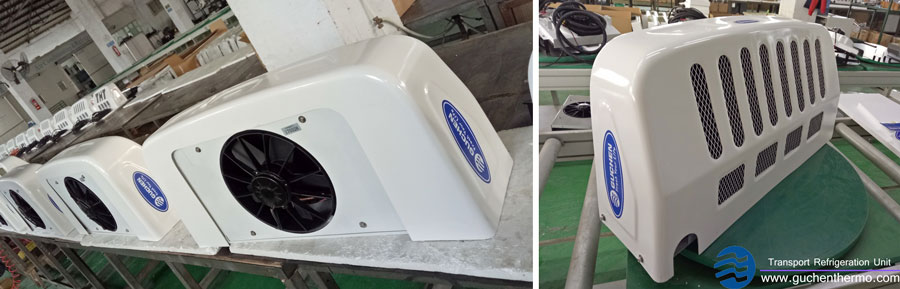

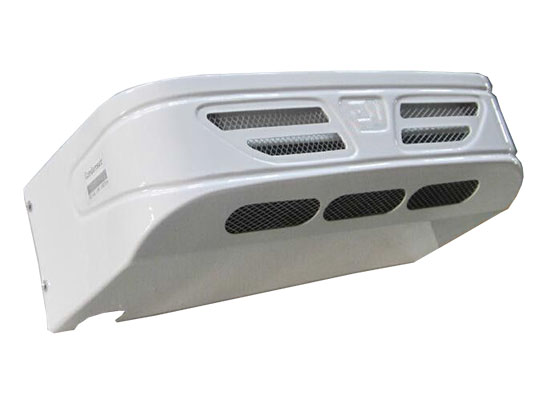

C-300 truck chiller units condenser in factory Guchen Thermo
PHOTO:Guchen Thermo C-300 Small Truck Refrigeration Units Condenser in Factory

Have a higer demand to the temperature that can be down to -30℃? Want to transport deep frozen cargoes? Try the following:

▲ Guchen Thermo TR-300 truck refrigeration units
▲ Or find the suitable truck freezer units in Guchen Thermo TR series truck refrigeration systems!

Technical Data:


Guchen Thermo C-300 Small Truck Refrigeration Units Unique Features


◆ C-300 small truck refrigeration unis adopt R134a Eco-friendly refrigerant
◆ Operation on 12/24V DC vehicles
◆ In cab digital controller, and shows ℃ or ℉
◆ Adopt top-brand key parts: Sanden, Danfoss, Good year, Spal, etc;
◆ Pass the CE/RoHs/ISO9001/ISO14001...certificationsEasy for installation and low maintenance cost
◆ Pro-active service, reasonable price, and long life service time.

Application:


C-300T truck chiller units  C-300T truck chiller units condenser  C-300T truck chiller units evaporators

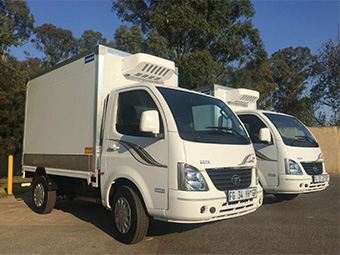

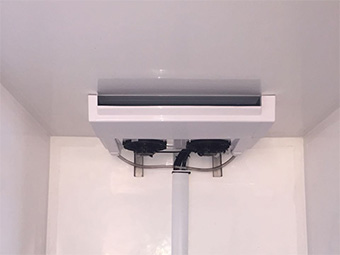

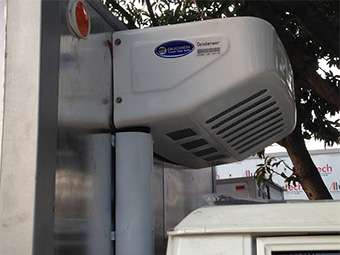

In the frist photo is Guchen Thermo C-300 Truck Chiller Units Mount on on Small Trucks ; In the second photo is C-300 small Tuck refrigeration Units Condenser mount on the front of truck; in the third photo, it is Guchen Thermo C-300 refrigeration unit for bakkie Evaporator Install in Inner Truck Box, you can see it has two fans in evaporators compared with
C-200 refrigeration units for pickup trucks only one fan.

Technical Data:



Model C-300

Temperature Range In Container

-5℃ ~ +25℃ / 23℉ ~ +77℉

Cooling Capacity

2700W  ( 0℃ /32)

Drive Model

Direct Vehicle Engine Driven

Voltage DC (V)

12V/24V

Refrigerant

R134a

Refrigerant Charge

1.5Kg - 1.6Kg

Box Temperature Adjustment

Electronic Digital Display

Safety Protect

High and low pressure switch

Defrosting

Defrosting and heating optional

Compressor

Model

DY5H14

Displacement

138cc/r

Condenser

Coil

Aluminum micro-channel parallel flow coils

Fan

2 Axial Fan

Dimensions&Weight

925 ×430×300mm&20.8 kg

Evaporator

Coil

Aluminum foil with internal ridge copper tube

Fan

2Axial Fan

Dimensions&Weight

850×550×175 mm&15kg

Box Volume

0℃/32

15m³

Optional Function

Electric standby, Heating system, CPR valve
