TR-400E Zero Emission Truck Refrigeration Unit

Model:TR-400E

Drive Type:All Electric

Installation:Nose Mount

Compressor:EVS34

Application:13m³-18m³ all electric trucks

Refrigerant:R404a

Introduction Application Dimension Configuration

Introduction:

TR-400E zero-emission truck refrigeration unit is a high voltage DC 250V-450V/380V-750V system. It draws power directly from the battery pack of the all electric refrigerated trucks. The energy consumption and the cost of operation are much lower than those of diesel powered refrigeration units.

TR-400E has been tested and proven to be reliable in harsh operating environments. It is a front mount unit designed for use in zero emission refrigerated transport applications such as light trucks, medium-sized trucks (13m³-18m³), trailers etc..

Outstanding Features of TR-400E Zero Emission Truck Unit

TR-400E features high cooling performance, high energy efficiency, easy installation, simple operation and maintenance.

◆ A Powerful EVS34 Compressor, Cool the Truck Quickly

The TR-400E features a high-efficiency scroll compressor with R404a refrigerant and an inverter drive motor for optimum energy efficiency and long service life. The electric refrigeration compressor can quickly cool down the interior of the truck to temperature as low as -20℃ (-4°F). This ensures that your food stays fresh during long journeys.

	Fast Cool Down Time
Ambient Temp.	30℃	30℃
Interior Temp. of Box Truck	0℃	-18℃
Cool Down Time	Less than 20min	Less than 1 hour

◆ Digital Controls
The TR-400E zero emission truck unit also features an adjustable thermostat control and a digital temperature display so you can easily set it up according to your needs.

◆ Beautiful Appearance, High Quality Made Shell

The evaporator is made of aluminum alloy shell, which has high strength and corrosion resistance; The condenser shell is made of ABS thermoplastic environmental protection material, which is environmentally friendly and recyclable, with bright appearance and great performance.

◆ Multiple HV Protection Mechanism

The electronic control system has multi-channel detection and multiple protections to ensure the safety and reliability of the control system.

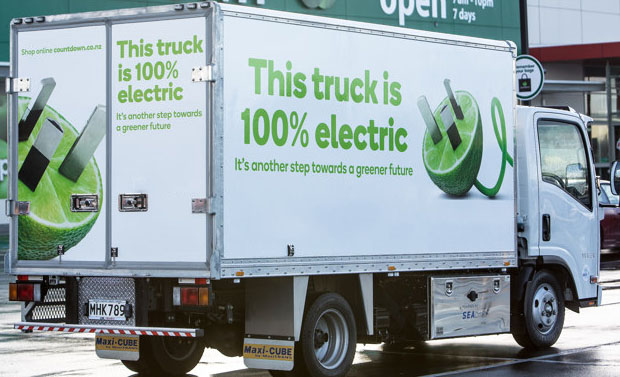

Application:

Dimension:

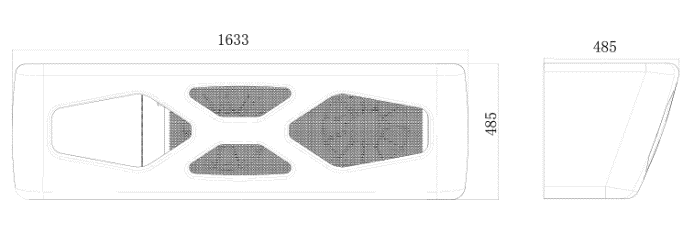

Condenser Size

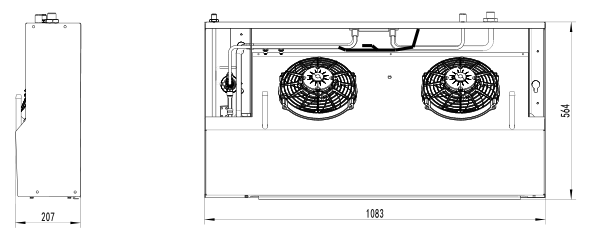

Evaporator Size

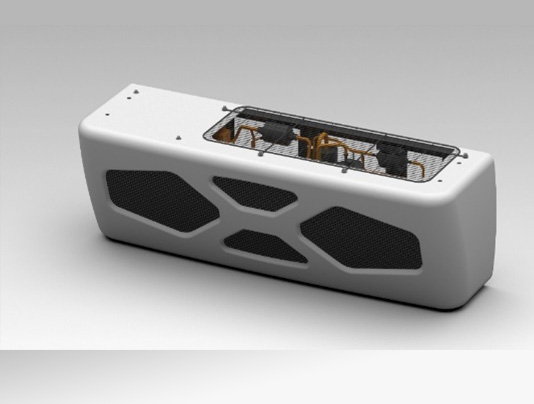

Configuration:

Technical Parameters of TR-400E Zero-emission Truck Refrigeration Unit

Model	TR-400E
Applicable box volume	13m³-18m³
Temperature range	-18℃~+30℃
Cooling capacity	0℃/+30℃	4250W
	-18℃/+30℃	2380W
High voltage	DC220V-DC450V / DC380V-DC750V
Power	0℃/+30℃	2650W
	-18℃/+30℃	2150W
Controller	High-end liquid crystal
Drive mode	Pure electric
Low voltage power	Self power supply DC-DC
Emergency power supply	AC380V (standard)
Compressor	EVS34
Refrigerant	R404a
Refrigerant charge	1.5kg
Defrost method	Hot air defrosting
Condenser assembly	Dimension mm (LWH)	1200512322
	Weight (kg)	<68.5
Condenser fan	Qty.	2pc
	Total air volume	3600m³/h
Evaporator assembly	Dimension mm (LWH)	1092590241
	Weight (kg)	24.5
Evaporator fan	Qty.	2pc
	Total air volume	2000m³/h
