TR-360MT Dual-temp Van Refrigeration Unit

Model:TR-360MT

Application:Panel vans, delivery van and other refrigerated vans

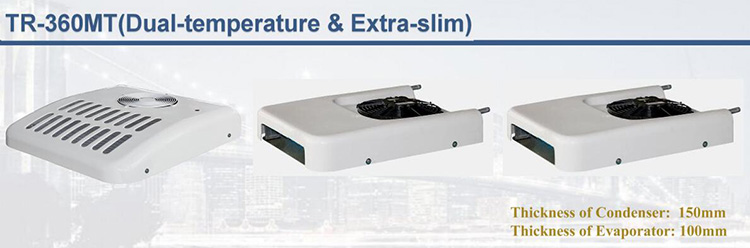

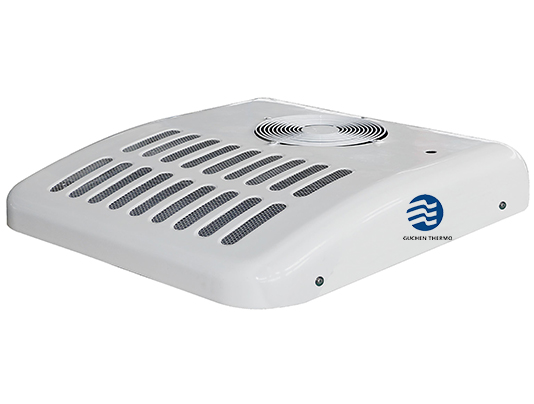

Condenser thickness:150mm

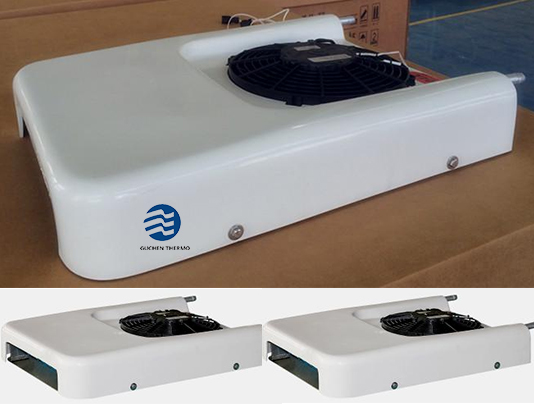

Evaporator thickness:100mm

Optional:data memory, GPS location and remote control functions

Popularity:Your preferred option for the last 1 km in Cold Chain Transport!

Introduction Application Safety Configurations Technical Parameters

Introduction:

Guchen Thermo, the leading manufacturer of transport refrigeration systems, has launched the novel dual-temperature refrigeration unit for cargo vans: TR-360MT. It is a direct drive refrigeration unit available for panel vans, delivery vans and other light duty vans. TR-360MT provides chill and freeze compartments to allow fleet manager to deliver fresh products alongside frozen ones. It is designed for cargo vans with dual temperature demands.

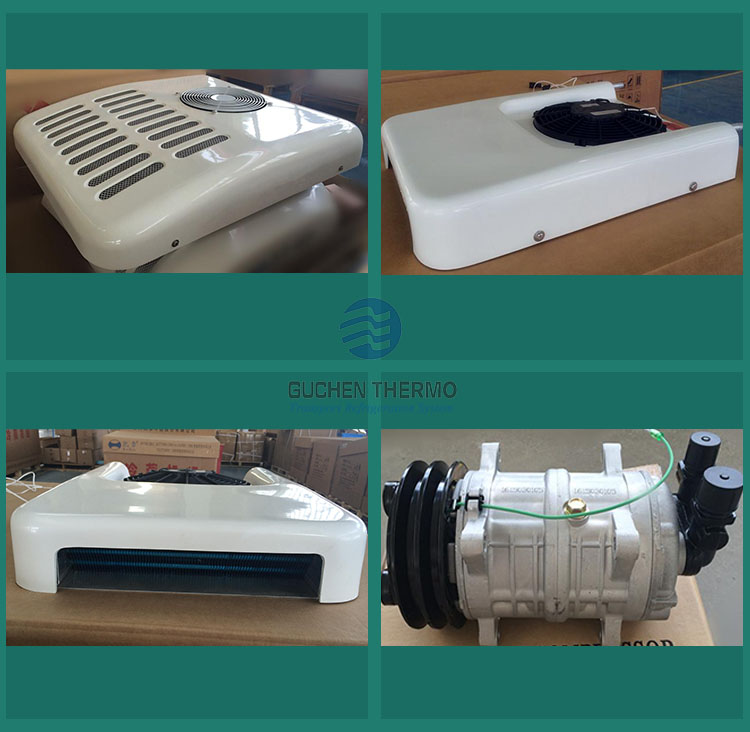

Standard Configurations of Guchen Thermo TR-360MT Dual-temp Van Unit

◆ R404a environment friendly refrigerant

◆ Temperature range in box: -20℃~+30℃

◆ Operate on 12V/24V vehicles

◆ Independent control of the dual- temperature areas

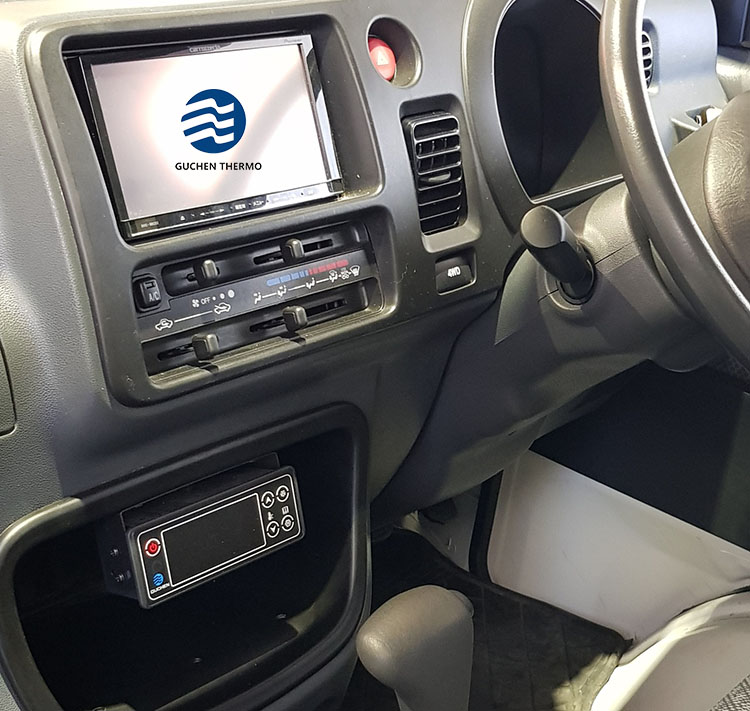

◆ Digital and multi-functional in-cab controller

◆ Extra-slim condenser and evaporators

◆ Hot gas defrost (Auto.&Man.) and optional hot gas heating

◆ Liquid injection for hot ambient temperature application.

◆ Guchen Thermo transport refrigeration units are available for all size vehicles. We provide one-stop tailor made service. For all your specific requirement on truck refrigeration units or van systems, we can bring personalized solutions to you.

Please mail to info@guchenthermo.com tell us about your product demands.

We are Ready to Customize Your Order!

Why to Select TR-360MT Multi-temp Van Refrigeration Unit?

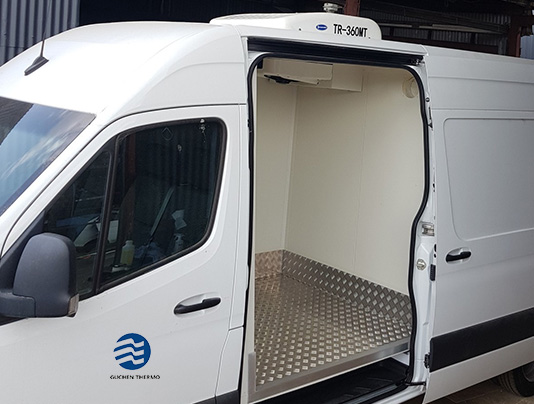

1.The dual-temperature refrigeration unit separates the van compartment into two separately controlled temperature zones: a separate freezing compartment for frozen foods with sliding side door towards the front of the delivery van, and a chilled compartment for fresh produces to the rear. Therefore it balances payload on the front and rear axles, safer to transport.

2.The installation of Guchen Thermo TR-360MT improves the van’s dual-temperature capability, making the cargo vans more productive. You can set either zone as a chiller and the other as a freezer. There are more and more customers in catering business opting for multi-temperature van unit to transport a range of cargoes together.

You may be interested in multi-temperature truck freezer unit!

3.TR-360MT dual temp van refrigeration units are best suited to those who will be transporting both chilled and frozen produces. You can set at any temperature for your specific requirements to keep your goods at a constant temperature.

4.For refrigerated van conversion, the owners could convert their ordinary van into dual-temperature delivery vehicle with the selection of dual refrigeration units. It enables you deliver multiple produces simultaneously in one delivery van, increased handling efficiency and saving transportation costs.

5.The temperature for each zone can be controlled and monitored independently. The temperature in freezer zone can be set as low as -30 degrees, while the chilling compartment can carry goods from -5 degree to +25 degree.

Application:

Businesses that Need TR-360MT Dual Temperature Van Refrigeration Units

The most essential part about refrigerated van transportation is that goods reach the end customer in perfect condition. However, you won’t be able to do this without the right refrigeration unit. There are quite a large number of industries that require dual-temperature van refrigeration system.

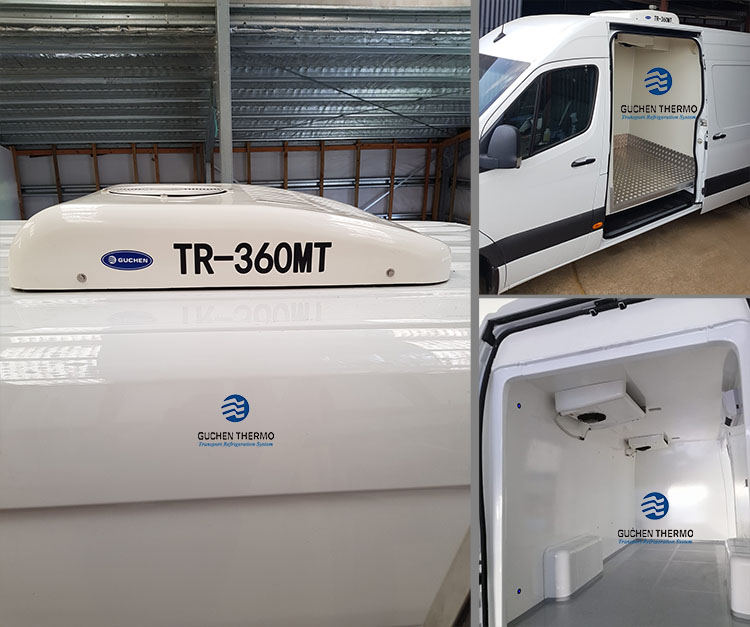

tr-360mt multi temp vanrefrigeration unit

Industries who need Guchen Thermo TR-360MT unit:

◆ Food service distribution, restaurants and food stores

◆ Catering companies

◆ Frozen treats and beverages

◆ Pharmaceutical companies, medical supplies

◆ Butcher shops etc.

Safety Configurations:

What Our Models Offer

◆Check valve for emergency maintenance

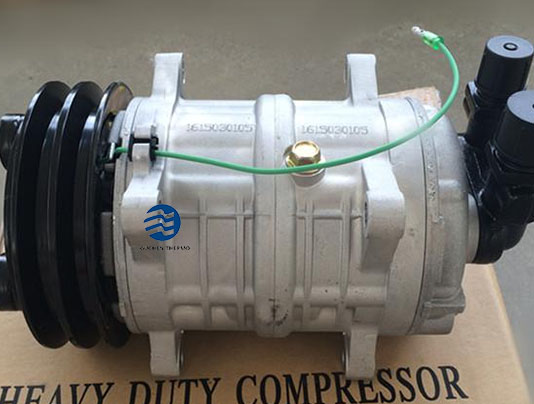

◆ Compressor CPR

◆ System HP and LP protection

◆ Safe installation to protect unit from electromagnetic interference

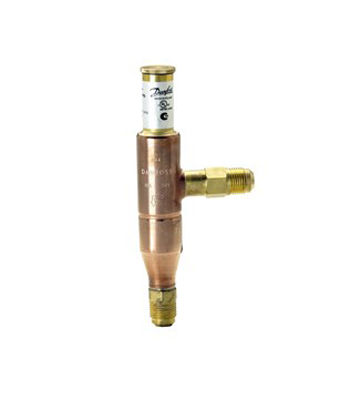

Danfoss CPR

Technical Parameters:

Model		TR-360MT
Refrigerant		R404a
Cooling Capacity	0℃/38℃	3365W
	-20℃/38℃	1985W
Air Vol. (m³/h)		600*2
Dimensions (mm)	Condenser	815965150
	Evaporator	570450100
Weight (kg)	Condenser	22kg
	Evaporator	11kg*2
Recommended Box Vol.	-20℃	6m³
	0℃	12m³
No. of Condenser		1
No. of Evaporator		2
