TR-450 for 16-22m³ Truck Box

Driven Type:Vehicle Engine Driven Units

Installation:Split Front Mounted

Compressor:QP16/163cc

Controller:Digital, In Cab

Application:16~22m³

Refrigerant :R404a

Introduction Features Application Technical Data

Introduction:

Description of Best Selling TR-450 Box Truck Reefer Units

Guchen Thermo TR-450 truck refrigeration system is in split structure and driven by the vehicle engine. It is especially designed for the medium or big trucks with 16~22m³ volume size or 5.2 meter length truck body to keep temperature range from -30℃ to +30℃.

With R404a Eco-friendly refrigerant, super slim evaporators, aluminum micro-channel parallel flow coils in condenser and aluminum foil with internal ridge copper tube in evaporator, the heat dissipation rate can be increased by 30%, that is to say, it has the best cooling performance, even in the high ambient temperature, the big cooling capacity is up to 4100W.

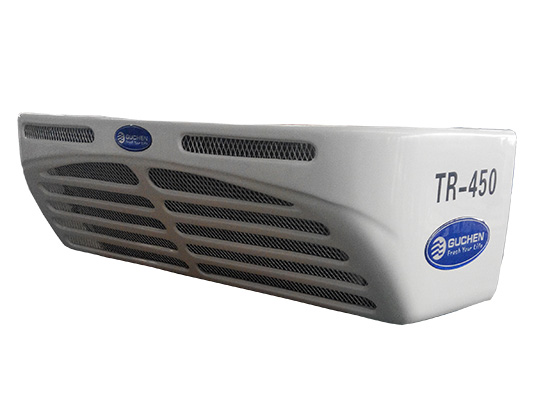

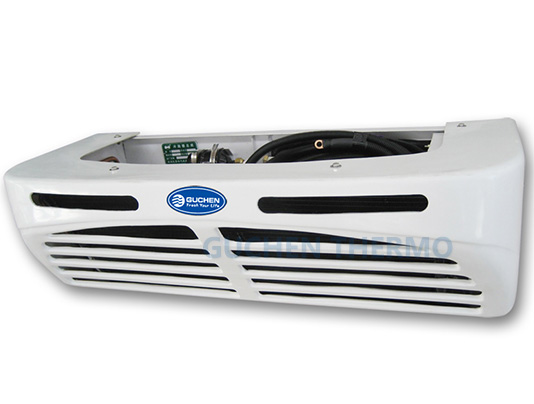

Guchen Thermo TR-450 Truck Freezer Units Condenser and Evaporator
PHOTO: Guchen Thermo TR-450 Truck Freezer Units Condenser and Evaporator

Want to see the customers installation examples? Please see: Guchen Thermo TR-450 Transport Refrigeration Units Export to Lebanon

Features:

Guchen Thermo TR-450 Freezer Units for Trucks Standard Configuration

◆ H/P, L/P protection of cooling system
◆ Liquid injection and oil return protection device
◆ Thermal protection device
◆ Expansion valve with maximum operating pressure
◆ Liquid injection valve for high temperature zone application.

Application:

Guchen Thermo TR-450 truck freezer units installation

Guchen Thermo TR-450 truck freezer units for the trucks

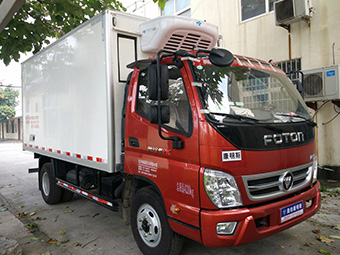

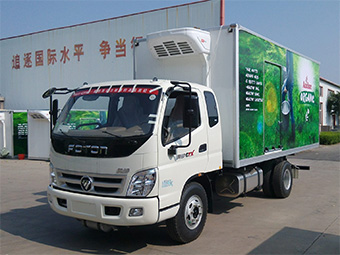

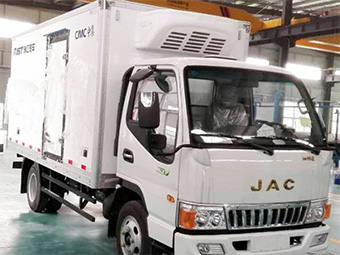

The first photo: TR-450 Truck Freezer Unit installated on FOTON trucks. The second photo: Guchen Thermo TR-450 box truck refrigeration systems on JAC trucks. The third photo: TR-450 Freezer Units for Trucks on a FOTON truck use for beverage transporatation company in Egypt.

Technical Data:

Model			TR-450
Temperature Range In Container			-30℃ ~ +30℃ / 0℉ ~ +86℉
Cooling Capacity	0℃	+32℉	4500 / 15354BTU
	-20℃	0℉	2260 W/ 7848 BTU
Compressor	Model		QP16
	Displacement		163cc/r
Condenser	Coil		Aluminum micro-channel parallel flow coils
	Fan		2 Axial Fan
	Dimensions&Weight		1148×475×388mm&35 kg
Evaporator	Coil		Aluminum foil with internal ridge copper tube
	Fan		2 Italy Spal Axial Fans
	Dimensions&Weight		1016×635×230 mm&17 kg
Defrosting			Hot gas defrosting(Auto./Manual)
Application	-20℃		16m³
	-15℃~-5℃		20m³
	-5℃~0℃		22m³
Optional Function			Electric standby,Heating,
