F-200S, F-300S, F-450S

Model:F-200S, F-300S, F-450S

Power:2000w, 3000w, 4500w

Voltage :AC220V/1Phase/50Hz

Refrigerant :R404a

Application :7-22 m³

Installation:Front mounted

Introduction Features Application Technical Data

Introduction:

Description of Guchen Thermo Integrated Electric Standby Truck Refrigeration System

Guchen Thermo as the truck reefer units suppliers and manufacturers can supply all kinds of truck refrigeration system, of which, the integrated electric standby truck refrigeration system is our new products. It is the truck refrigeration units that its standby system and condenser integrate into one piece, that is to say, the electric compressor is in the condenser, and standby system is in the electric compressor.

Compared with the traditional truck refrigeration units equipped with standby system, the integrated standby units has the advantage of easy to installation. Customers don’t need to install the standby system under the truck chassis, so it make the whole truck refrigeration units beautiful, compact and concise.

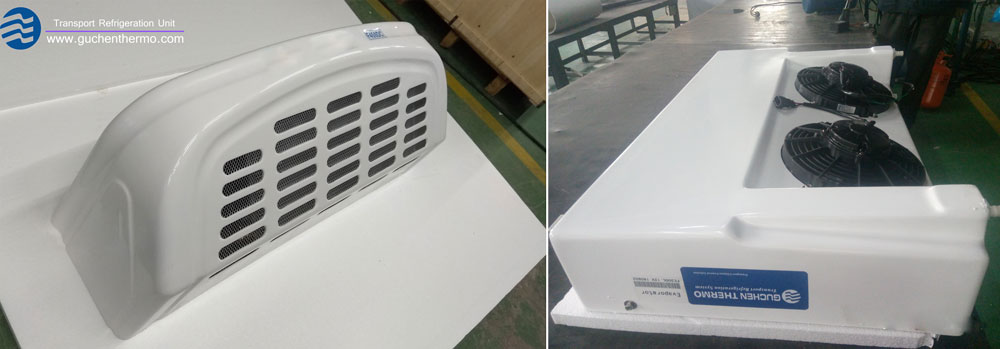

f-450s truck refrigeration units

PHOTO: f-450s truck refrigeration units

Features:

Guchen Thermo Integrated Electric Standby Truck Refrigeration Units Features

◆ Easy to install, standby system is in the internal of condenser, so it can decrease the wire installation.
◆ Save the installation space, small in size, beautiful appearance.
◆ After thousands times of testing in the lab make it has a reliable working performance.
◆ Vehicle engine or standby system models for choice.
◆ Decrease fuel consumption and save transportation cost.

Application:

truck refrigeration units for sale guchen thermo

truck reefer units suppliers guchen thermo

Technical Data:

Models

F-200S

F-300S

F-450S

Cooling capacity

Temperature

Watt

Btu

Watt

Btu

Watt

Btu

Ambient +38℃ (100℉)

Road

0℃

2000

6820

3000

10230

4500

15350

-18℃

950

3240

1600

5460

2300

7840

Electric

0℃

2000

6820

3000

10230

4500

15350

-18℃

950

3240

1600

5460

2300

7840

Airflow Volume

950m³/h

1500m³/h

Temp. Range

-25℃ ~ 30℃

Refrigerant

R404a/1.3kg

R404a/1.8kg

R404a/2.4kg

Compressor

Road Model

Sanden/5S11

Sanden/5S14

QUE/QP16

Standby Model

Denso/ES34

Voltage

AC220V/1Phase/50Hz

Deforest Function

Hot gas defrosting (auto and manual)

Dimensions

Condenser

925*430*296mm

1250*475*380mm

1450*475*80mm

Evaporator

610*550*175mm

850*50*175mm

1020*660*230mm

Recommend Box Volume

-18℃

7m³

10m³

16m³

0℃

10m³

16m³

22m³

Notes: 1. Ambient temperature: +38℃ (100℉) for cooling, 0℃ (32℉) for heating; K-value: ≤0.32Watts/m³℃; Recommend box volume in application is related to ambient, refrigerated body K-value and cargoes that will be loaded, etc..

2. Specifications are subject to change without priority notice.
