TR-350 for 15-25m³ Truck Box

Driven Type:Vehicle Engine Driven Units

Installation:Split Front Mounted

Compressor:QP16/163cc

Controller:Digital, In Cab

Application:15~25m³

Refrigerant :R404a

Introduction Features Application Technical Data

Introduction:

Description of TR-350 Transport Temperature Control System

Guchen Thermo TR-350 refrigerated transport equipment is vehicle engine driven units, front mounted and apply for 15 ~ 25m³ small and medium sized refrigerated truck bodies or 3.9m to 4.2m length refrigerated truck bodies. With R404a Eco-friendly refrigerant, it can offer the big cooling capacity up to 3815W, to keep temperature range from -30 ℃ to + 30 ℃ for transporting fresh or deep frozen cargoes. In the past few years, it was definately a solid choice for truck and logistic companies who are looking for purchase a full set of mediutemperature cont

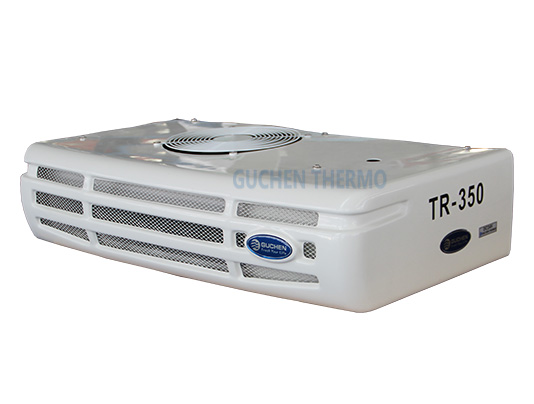

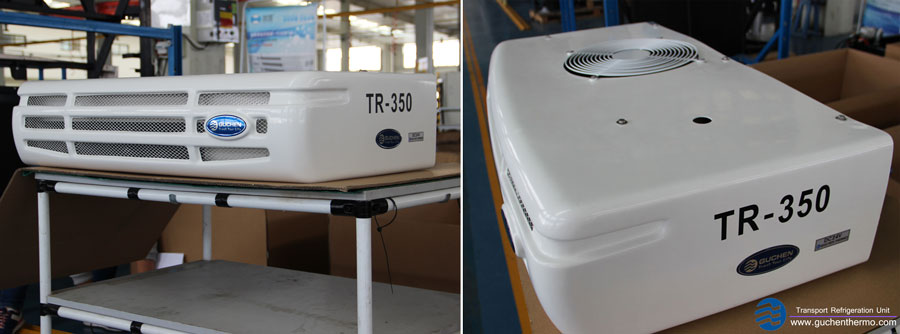

TR-350 truck refrigeration units guchen thermo

TR-350 truck refrigeration units guchen thermo

Other Options:

◆ TR-350T Van Refrigeration Units
◆ TR-350TS Refrigerated Van Electric Standby

Features:

Highlights of TR-350 Frozen Transport Refrigeration Unit

◆ H/P, L/P protection of cooling system
◆ Add CPR valve to protect compressors, especially suitable for the hot place.
◆ Liquid injection and oil return protection device
◆ Thermal protection device

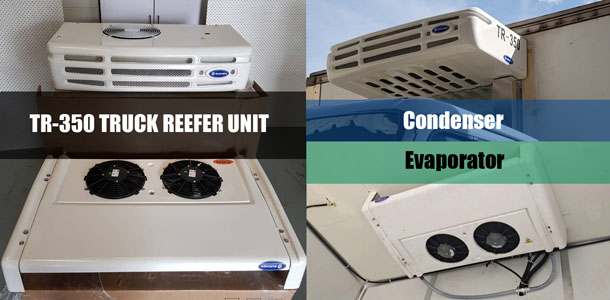

transport temperature control systems for trucks

Application:

Guchen Thermo TR-350 transport refrigeration units

TR-350 transport refrigeration units digital panel

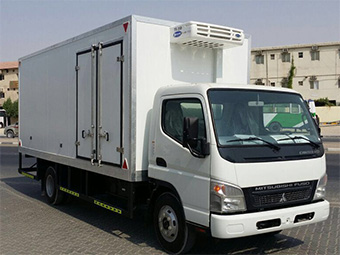

Pic1: TR-350 install on the mitsubishi fuso refrigerated trucks

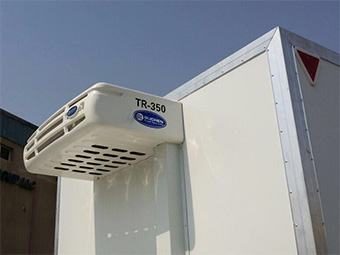

Pic 2: Condenser of TR-350 deep-frozen transport temperature control system front-mounted on mitsubishi fuso truck;

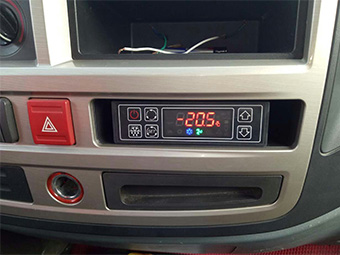

Pic3: Controller Panel of TR-350 refrigerated transport equipment (-20.5℃), which can be used for transport frozen and deep frozen cargos, the best choice for truck companies.

Technical Data:

Model			TR-350
Temperature Range In Container			-30℃ ~ +30℃ / 0℉ ~ +86℉
Cooling Capacity	0℃	+32℉	3815W / 4437Kcal/h / 13020BTU
	-20℃	0℉	2260 W/ 2628Kcal/h / 7710 BTU

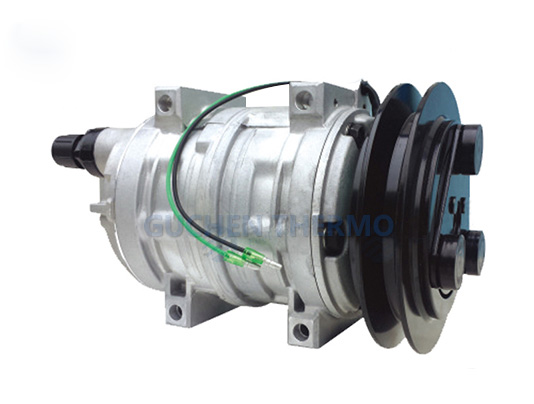

Compressor	Model		QP16
	Displacement		163cc/r
Condenser	Coil		Aluminum micro-channel parallel flow coils
	Fan		1 Axial Fan
	Dimensions&Weight		1010×553×230 mm&21 kg

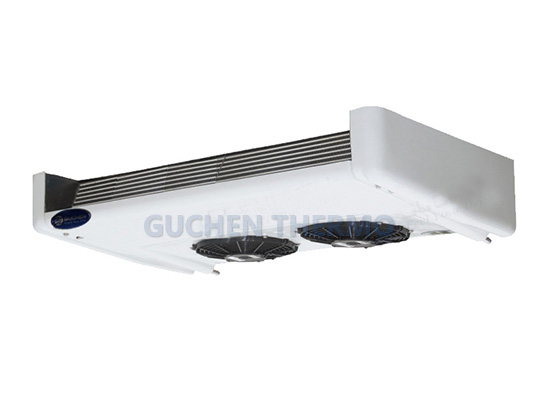

Evaporator	Coil		Aluminum foil with internal ridge copper tube
	Fan		2 Italy Spal Axial Fans
	Dimensions&Weight		1105×649×230 mm&17 kg
Defrosting			Hot gas defrosting(Auto./Manual)
Application	-20		15m³
	-15℃~-5℃		18m³
	-5℃~0℃		22m³
Optional Function			Electric standby,Heating
